Geometry setup

The spatial resolutions of the deformation we need to resolve is 0.5mm

The measure is possible through aperture windows, either 1,3,4:

  • Centre to centre distance from viewports: 410mm
  • Size of each aperture is 455 mm
  • The window already installed in the viewports are made of Fused silica

https://ncc.mildstone.org/s/KnYxpfSiMroK6q8

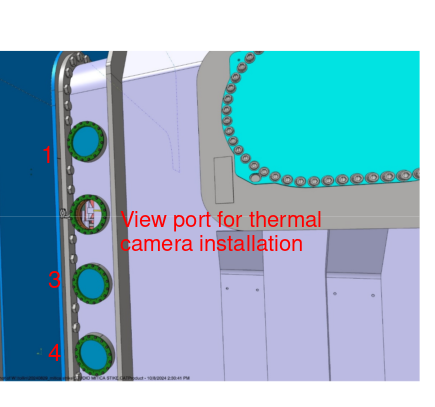

1770027505883

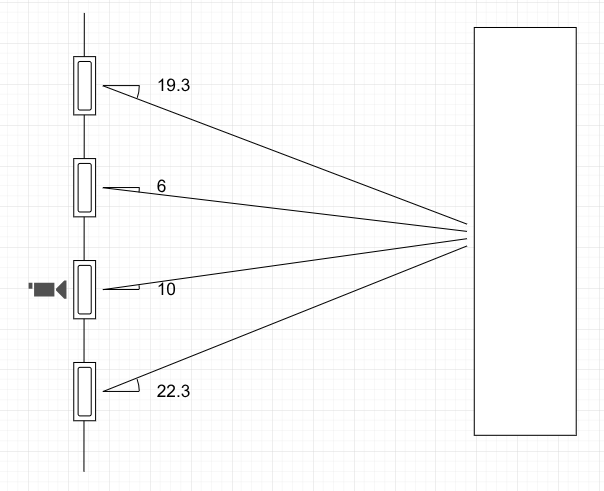

View angles from viewports to the place center: North side of bunker

  • Viewport 1: 19.3°
  • Viewport 2: 6° [ NOT AVAILABLE - USED FOR IR CAMERA ]
  • Viewport 3: 10°
  • Viewport 4: 22.3°

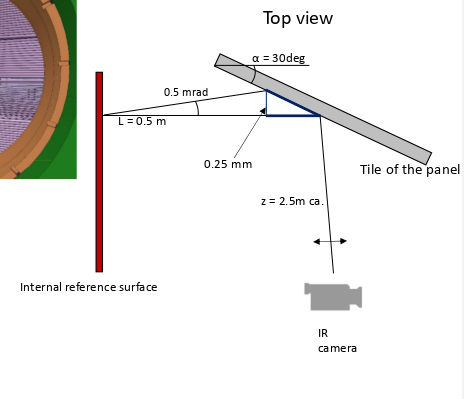

17700290224381770029143207

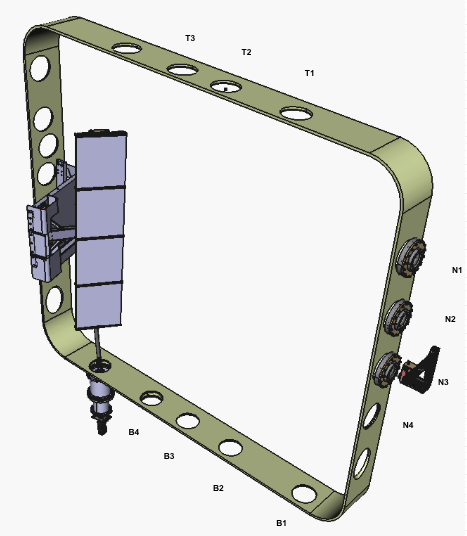

Window positions

1770823654597

OPEN POINTS:

  • View angle with respect to the distance from the glass
  • points of expected measure probes
  • illumination needed?
